Universal Clipdraw Fits Virtually All Handguns

Universal clipdraw fits virtually all handguns Universal clipdraw fits virtually all handguns

NO GUNSMITHING REQUIRED
SIMPLE DROP-IN INSTALLATION
Mounts with 3M Corp. #4941 VHB (very high bond) double coated tape
Universal Clipdraw for SEMI-AUTOS

Universal clipdraw fits virtually all handguns

Mounts on either side
Mounts solidly on serrated, engraved or smooth surfaces

Universal clipdraw fits virtually all handguns

Can be mounted on the slide or frame — steel or polymer
Adjustable for depth of carry

Universal clipdraw fits virtually all handguns

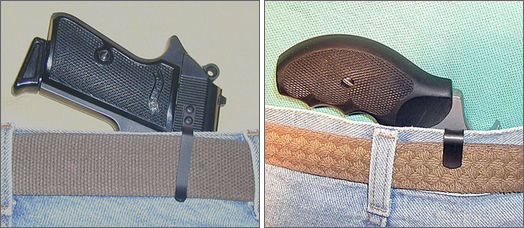

Mount forward for higher carry and maximum access

Mount further back for deeper carry and maximum concealment

Universal Clipdraw for REVOLVERS

Universal clipdraw fits virtually all handguns

Fits small or large frame revolvers
Mounts on the right side only

Universal clipdraw fits virtually all handgunsThe “Universal” Clipdraw attaches in seconds with 3M Corp. #4941 VHB (very high bond) double coated tape. VHB tape is used in the construction and aircraft industries as a replacement for rivets. It provides a 20 lb. continuous bond that resists oil, solvents, heat and vibration. Heavy recoil and rapid slide movement have no effect on the bond strength between gun and Clipdraw. The Clipdraw stays solidly in place with adhesion actually increasing over time. The “Universal” Clipdraw consists of two parts. The mounting plate attaches to the gun with the double coated tape. The clip part screws to the mounting plate with two 1/8″ button head screws.

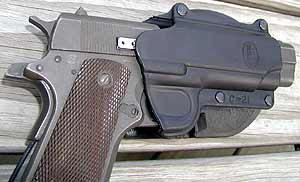

Universal clipdraw fits virtually all handgunsSwitching to a holster is simple. Just remove the clip part and in most cases the gun can be holstered with the low profile mounting plate left in place. No need to remove and replace the tape each time.

Since the Universal Clipdraw was introduced in 2004 it has been accepted andused extensively by the U.S. Military and Department of Homeland Securityalong with many other federal, state and local law enforcement agencies.

Skeptical of the VHB tape attachment? If you purchase any Clipdraw from Skyline Toolworks LLC you can return it at any time, for any reason, no questions asked.We will promptly refund your full purchase price — including S&H.

Automatic Installation — #SA

Universal clipdraw fits virtually all handguns#SA mounts on either side of the slide or frame.
Mounting plate with threaded screw holes attaches with double-sided VHB mounting tape.
The clip part is screwed to the mounting plate.
Mounting requires just 3″ × ¼″ of flat surface which can include serrated areas.
VHB tape provides full adhesion on steel, aluminum or polymer surfaces.

Revolver Installation — #RV

Universal clipdraw fits virtually all handguns#RV mounts on the right side of revolvers below the cylinder.
Mounting plate with threaded screw holes attaches with double-sided VHB mounting tape.
The clip part is screwed to the mounting plate.
Requires just 2¾″ × ¼″ of flat surface for mounting.
VHB tape provides full adhesion on steel, aluminum or polymer surfaces.

Universal clipdraw fits virtually all handgunsTo remove the mounting plate simply pry it off with a thin blade screwdriver.







Universal clipdraw fits virtually all handgunsStretch release technology provides instant and clean removal leaving no adhesive residue or blemish to the finish.







Universal clipdraw fits virtually all handgunsIncluded with each Universal Clipdraw are:

Six strips of tape (one required and five extras)
Six alcohol prep pads for cleaning surfaces prior to applying the tape
Four screws (two required and two extras)
One allen wrench

Extra Tape Strips

Universal clipdraw fits virtually all handgunsFor permanent attachments, only one strip of double sided tape is needed (the Universal Clipdraw comes with 6). However for those that remove and reinstall the Universal Clipdraw frequently, extra double sided tape strips are available. Each extra tape package includes 6 strips and 6 alcohol wipes.

Price per package is $3.00

VHB Tape Videos
VHB tape strength test video #1
VHB tape strength test video #2
Characteristics and specifications of VHB tape
Modern Marvels TV Show
